EnGenius ECS1112FP Cloud Managed 8-Port Gigabit 130W PoE+ Switch

จำนวนครั้งที่เปิดดูสินค้า : 2015 | ความคิดเห็น: 0

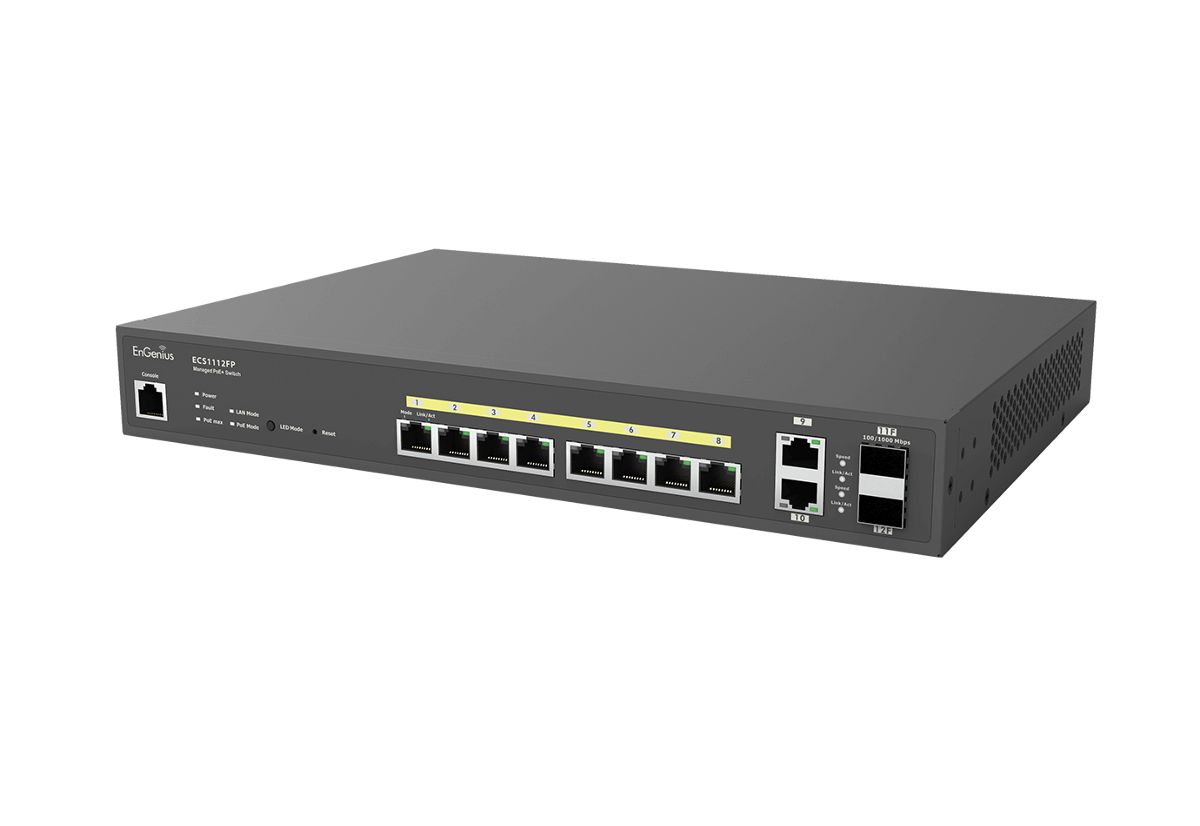

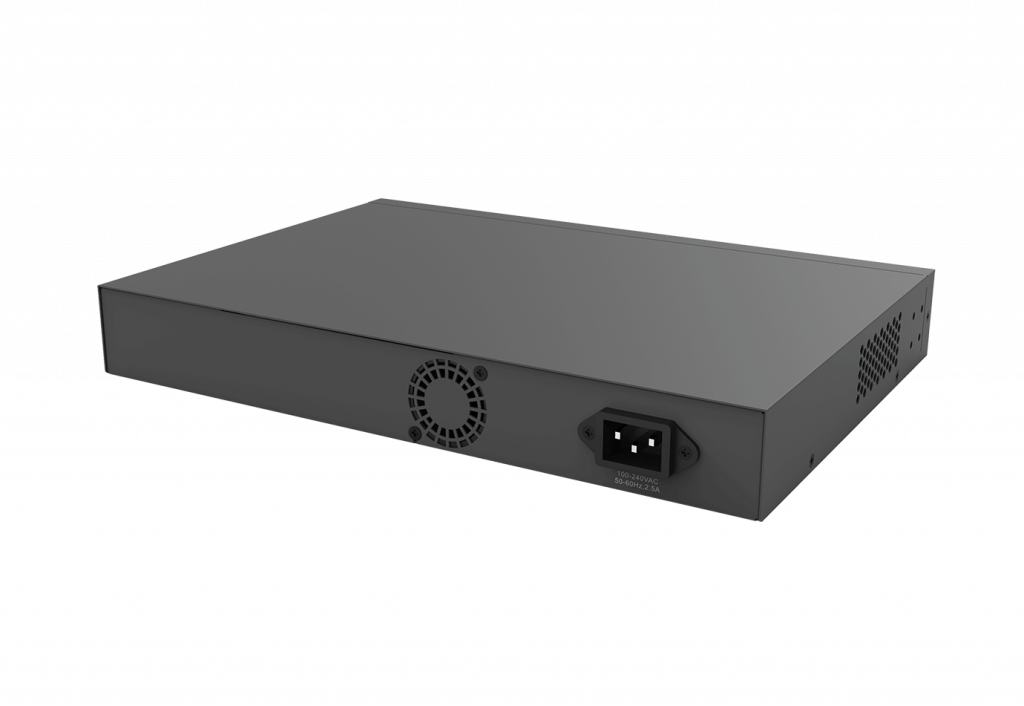

EnGenius ECS1112FP Cloud Managed 8-Port Gigabit 130W PoE+ Switch

เพิ่มเมื่อ: 2023-07-03 15:56:33.0

แก้ไขล่าสุด: 2025-04-28 12:32:35.0

เบอร์โทรติดต่อ: 062-5193997 , 02-4582949

อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
ฮับสวิตซ์จ่ายไฟ EnGenius ECS1112FP Cloud Managed 8-Port Gigabit 130W PoE+ Switch

9500.00 บาท

EnGenius ECS1112FP

ECS1112FP Cloud Managed 8-Port Gigabit 130W PoE+ Switch

EnGenius Cloud Managed Layer 2+ Switch ECS1112FP offers 8 Gigabit PoE+ ports, 2 Dual-Speed SFP uplink ports, and a 130W budget, ideal for SMBs. It supports zero-touch provisioning and centralized cloud management. With advanced security features, Voice-VLAN, and PoE Extended Mode, it optimizes network efficiency for quality voice and video traffic, enabling peak performance for SMBs.

- 8x Gigab- PoE+ ports and 2 x Dual-Speed SFP (1G Fiber) uplink ports for high-speed connections
- 8x 802.3af/at PoE+ ports with 130W PoE budget
- Zero touch provisioning, centralized cloud management and visualized monitoring
- Hybrid cloud switch supports flexible management options such as EnGenius Cloud or standalone
- Robust security that supports Port based / MAC based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication and more
- Optimized for quality voice and video traffic with Voice-VLAN feature
- PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades

Technical Specifications

Port Standards :
- 802.3 10Base-T Ethernet
- 802.3u 100Base-TX Ethernet
- 802.3ab 1000Base-T Ethernet
- 802.3x Full-Duplex Flow Control

Network Ports : 10 10/100/1000 Mbps Ports + 2x SFP Ports

Switching Capacity : 24Gbps

SDRAM : 256MB

Flash Memory : 32MB

PoE Capable Ports : 1-8

Total PoE Budget : 130w

Power Source : 100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators :

- Power LED
- Fault LED
- PoE Max LED
- LAN Mode LED
- PoE Mode LED

Ports :

- Link/Activity/Speed (per Ethernet port)
- Link/Activity/Speed (per SFP slot)

L2 Features

Network Management :
- EnGenius Cloud
- ezMaster
- Local Web GUI

MAC Address Table : 8K

Jumbo Frame : 9K

Multicast Group : Max 256 groups

MLD Snooping : MLD Snooping: v1

QoS-Number of Priority Queues Supported : Queue 8

Trust Mode : Cos/802.1p

DSCP : CoS/802.1p-DSCP

Scheduling Mechanism : Strict / WRR/ Strict + WRR

Bandwidth Control ; Port-based bandwidth control (Ingress/Egress)

Port Security : Max. 256 Entries

Access Control List (ACL) :

- MAC Based ACL
- IPv4/IPv6 Based ACL
- ACL Binding

Web Graphical User Interface (GUI) :

- HTTP IPv4 / IPv6
- HTTPS IPv4 / IPv6

SSL Certificate : Certificate/Key Import

SNMP : SNMP v1/v2c/v3 Support

RMON : RMON 1,2,3,9

System Time : Time Setting/Daylight saving

Common L2 Features :

- 802.1d Spanning tree
- Loopback Detection
- Multicast Filtering
- IGMP Multicast Forwarding
- IGMP Snooping
- MLD Multicast Forwarding
- 802.1Q VLAN tagging
- 802.3x flow control
- 802.3ad Link Aggregation
- IPv4 DHCP Relay
- IPv4 DHCP Snooping
- IPv4 DHCP Snooping Source MAC Address Check-up
- ARP Inspection
- ARP Packet Validation (additional validation checks)
- Voice VLAN
- Port-based VLAN
- Protocol-Based VLAN
- CoS Mapping
- 802. 1X Radius Authentication Protocol
- IEEE 802. 3az Energy Efficient Ethernet (EEE)
- Command Line Interface (CLI)
- SSH Server
- Telnet Server
- TFTP Client
- Configuration Upgrade/ Backup
- Simple Network Time Protocol (SNTP)
- SYSLOG
- 802.1d Spanning tree
